COMPOSITE MICRO PILE(CMP)

Construction Methods Main Materials Performance and Economics Testing & Certification Sequence & Application Sectors

Main Materials

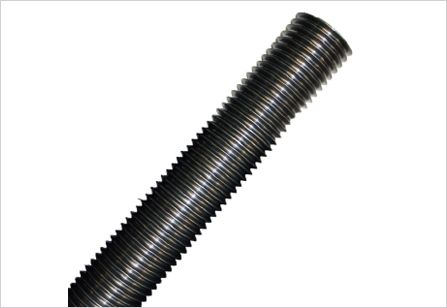

THREAD BAR

Steel Grade
(N/㎟)		 Diameter
(mm)		 Cross- sectional Area
(㎟)		 Yield Load
Fy(ton)		 Allowable Load
Fa(ton)
SS500 50 1,962 100.0 57.1
65 3,316 169.0 96.6
75 4,415 225.0 128.6

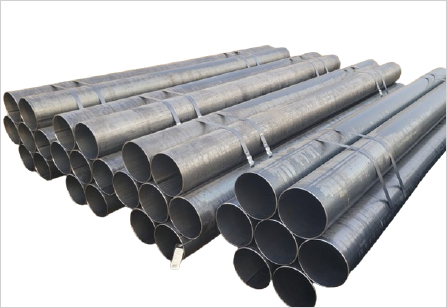

STEEL PIPE

Steel Grade
(N/㎟)		 Diameter
(㎜)
SS275 Ø165(4.5t)
Ø216(4.5t/6.0t/8.2t)
Ø267(6.0t/9.3t)
Ø318(7.0t/10.3t)

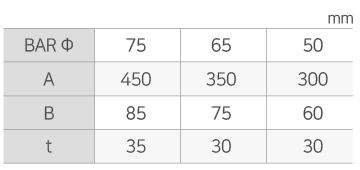

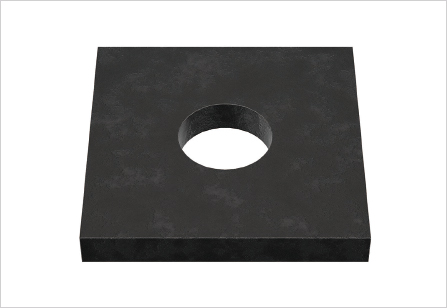

STEEL PLATE

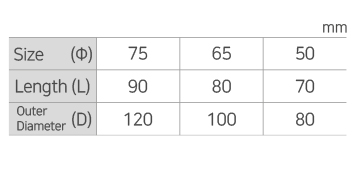

LOCK NUT

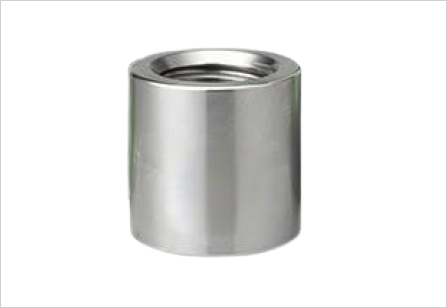

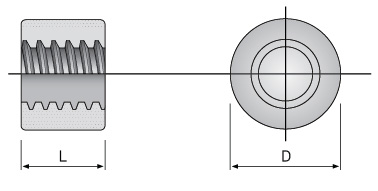

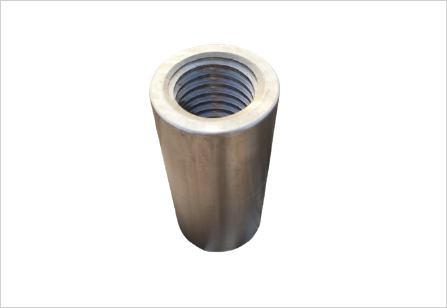

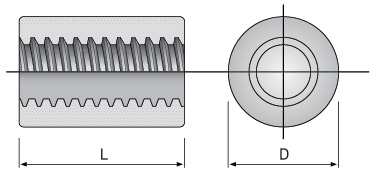

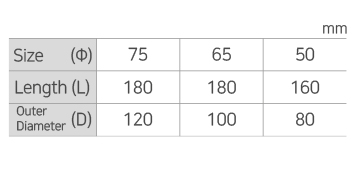

COUPLER

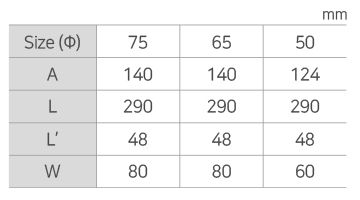

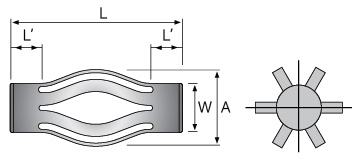

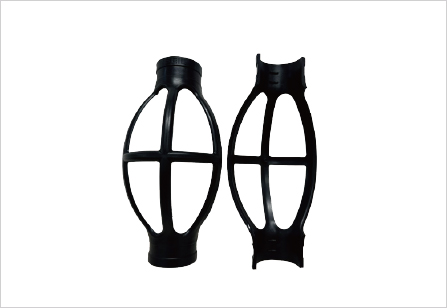

CENTRALIZER

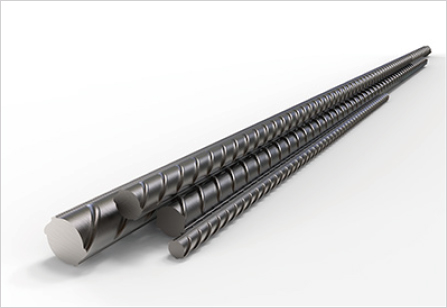

REINFORCEMENTSTEEL BAR
